It is suitable for hot sealing and cutting both blank film and colorful plastic film, which make of HEPD, LDPE
It is suitable for hot sealing and cutting both blank film and colorful plastic film, which make of HEPD, LDPE
|
Model |
BT1020S2-AP |
BT1220S2-AP |
|
Voltage |
220/380v |
220v/380v |
|
Power |
11kw |
12kw |
|
Max.Bag-making Width |
420mm |
520mm |
|
Max.Bag-making Length |
350-650mm |
350-650mm |
|
Bag-making Speed |
30-300p/min |
30-280p/min |
|
Thickness |
0.008-0.05mm |
0.008-0.05mm |
|
Weight |
2200kg |
2400kg |
|
Overall dimensions |
6200x1800x1900mm |
6200x2000x1900mm |
BAIHAO reserve the right to change technical characteristic without notice.
Automatic loader: Jumbo roll with film width 1400mm
can cut into 2 Lines / 4 lines with hot slitting knife
with side gusset function
Automatic loader: Jumbo roll with film width 1200mm
can cut into 2 Lines with hot slitting knife
with side gusset function
Film finished, the machine will auto stop.
Feeder controller by delta inverter
With 1 set of EPC
Automatic loader: by air cylinder
Film finished, the machine will auto stop.
With unwinding motor
Feeder controller by delta inverter

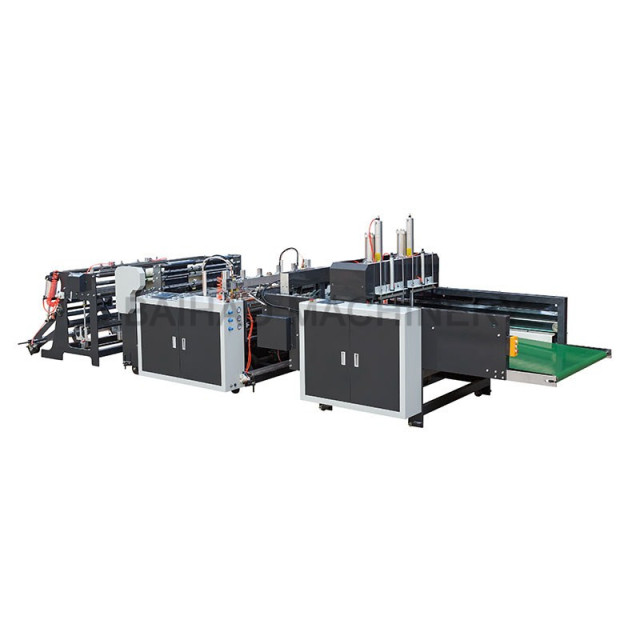

This machine is professionally applied to making LDPE and HDPE vest bags and colorful vest bags.
