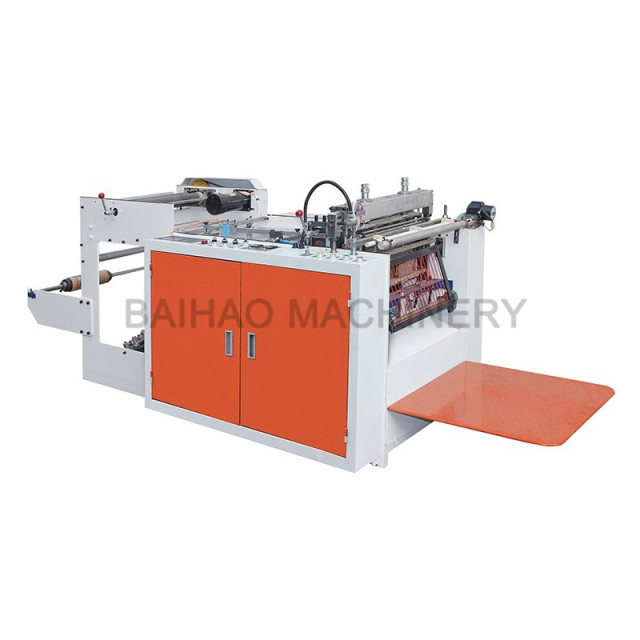

This machine is professionally applied to making LDPE and HDPE vest bags and colorful vest bags.
This machine is professionally applied to making LDPE and HDPE vest bags and colorful vest bags.
★ Professional computer control system, coordinating disaggregated classification step motor;
★ Frequency speed converter for the major motor;
★ A high precision speedy photoelectric tracker;
★ It can be installed with a servo motor.
★ Large-scaled double linear machine can synchronously produce in double production line, increasing two times the production capacity;
★ Fine quality pneumatic elements and electric elements can meet the high reliability in production.
|
Model |
BT620 |
BT820 |
|
Bag-making W |
50-550mm |
50-750mm |
|
Bag-making L |
300-750mm |
300-750mm |
|
Bag-making Speed |
30-250p/min |
30-250p/min |
|
Power |
4.5kw |
6.0kw |
|
Weight |
650kg |
800kg |
|
Overall dimensions
|
3200x1200x1550mm |
3200x1400x1550mm |
BAIHAO reserve the right to change technical characteristic without notice.
Automatic loader: by air cylinder
Film finished, the machine will auto stop.
With unwinding motor
Feeder controller by delta inverter
Automatic loader: Jumbo roll with film width 1400mm
can cut into 2 Lines / 4 lines with hot slitting knife
with side gusset function
This machine is professionally applied to making LDPE and HDPE vest bags and colorful vest bags.
Automatic loader: Jumbo roll with film width 1200mm
can cut into 2 Lines with hot slitting knife
with side gusset function
Film finished, the machine will auto stop.
Feeder controller by delta inverter
With 1 set of EPC
