Model |

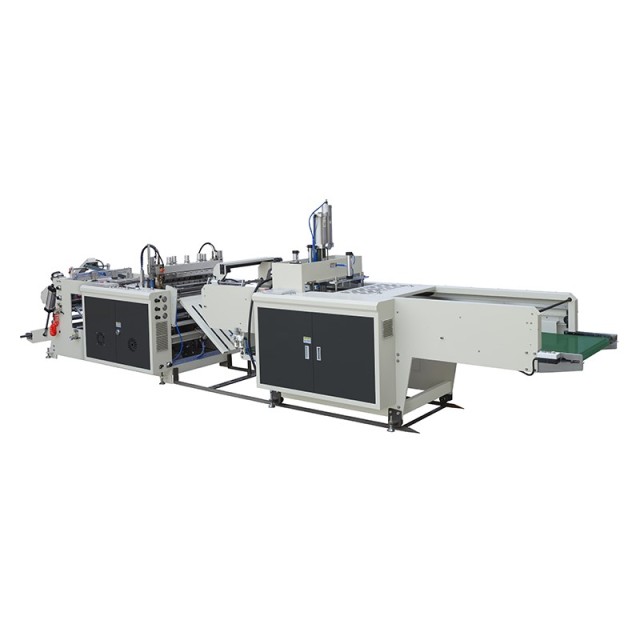

BT720-AP |
|
Voltage |
380v 3Phase |
|
Total Power |
12kw |
|
Air Pressure |
0.4～0.6MPa |
|
Film Material |
HDPE/LDPE/PLA |
|
Bag Length |
350～1000mm |
|
Bag Width |
200～660mm |
|
Film Thickness |
0.01～0.08mm |
|
Speed |
≤200pcs/min |
|

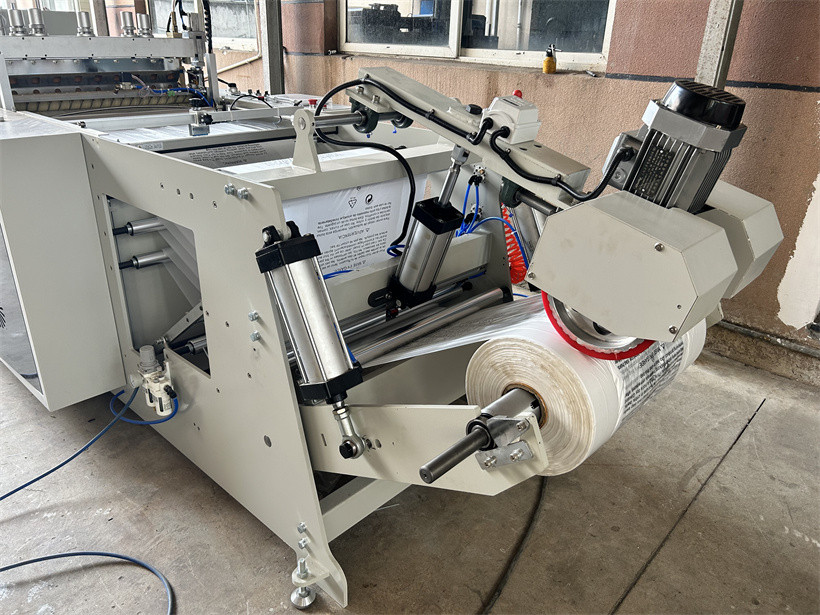

Unwinding Film Diameter |
≤800mm |
|
Weight |
2000kg |
|
Dimensions |
6500*1400*1980mm |
|
Name |
Brand |
Model |
Quantity |
|

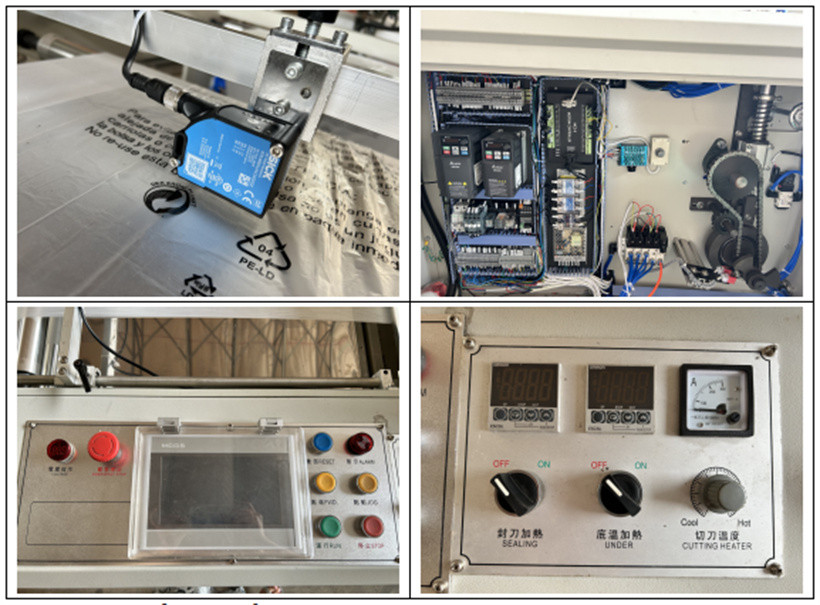

Touch Screen |
MCGS |
7 inch |
2 pcs |
|
Motion Controller |
RISHENG |
MCS-I |
1 pc |
|
Puncher Servo |
XINJE |
XC3-42 |
1 pc |
|
Puncher Servo |
ELESY |
0.75KW |
1 pc |
|
Pulling servo |
FUJI |
3KW |
1 pc |
|
Host Inverter |
DELTA |
1.5KW |
1 pc |
|
Feeding Inverter |
DELTA |
0.75KW |
1 pc |
|
Temperature Controller |
DELTA |
DTK48 |
2 pcs |
|
Photo Sensor |
Leuze |
PRK5.M3/2N |
2 pcs |
|
Proximity Sensor |
Leuze |
IS122 |
5 pcs |
|
Color Sensor |
SICK |
KTS-WB4114 |
1 pc |
|
Air Valve |
SMC |
VX210 |
2 pcs |
|
Solenoid Valve |
Mindman |
MVSC-220 |
All |
|
Switch & Button |
Schneider |
ZB2 |
All |
|
Contactor |
Schneider |
LC1N |
1 pc |
|
Circuit Breaker |
Schneider |
E9 |
3 pcs |
