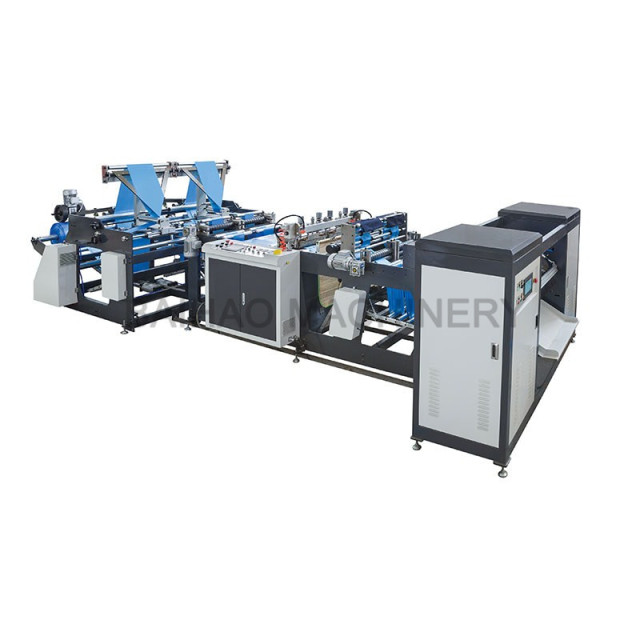

GARBAGE BAG MAKING MACHINE

Model

BL520B2-AR

BL720B2-AR

Voltage

380v 3phase

380v 3phase

Total power

12kw

16kw

Compressed air pressure

0.5MPa

0.5MPa

Suitable materials

HDPE,LDPE

HDPE,LDPE

Producing length

300-1000mm

300-1200mm

Final product width(two lines)

100-200mm

100-280mm

Producing speed

100m/min *2   // 220p/min *2

100m/min *2   // 220p/min *2

Max. Unwinding dia.

1000mm

1000mm

Max. Rewinder dia.

150mm

150mm

Weight

2600kg

2800kg

item

brand

details

remark

Touch screen

MCGS

TPC7062KD

1pc

Main machine controller

RISHENG

MSC-III

1pc

Rewinding controller

XINJIE

XC3-42T

1pc

Servo motor

FUJI

2KW

2pcs

Main machine inverter

DELTA

1.5KW

1pc

Feeder motor inverter

DELTA

0.75KW

6pcs

Rewinding motor inverter

DELTA

0.75KW

5pcs

Temperature controller

OMRON

E5CWL

3pcs

Photoelectric sensor

LEUZE

PRK5.M3/2N

2pcs

Proximity transducer

LEUZE

IS122PP/2N0

10pcs

Displacement sensor

TURCK

Ni10-M18-LIU

4pcs

Solenoid valve

MINDMAN

10pcs

Switch

SCHNEIDER

20pcs

Contactor

SCHNEIDER

2pcs

Breaker

SCHNEIDER

3pcs

Function:

1.Sealing blade and Cutting knife together

2.auto loader by air cylinder, with air shaft 2pcs

3.folding device 2 sets

4.with unwinding motor 2 sets

5.Auto stop when the film finish
