Model |
BL1020C-AR |
|
Producing length |
400-1200mm |
|
Producing width |
950mm |
|
Rewinding width |
350mm |
|
Max.Producing speed |
70m/min |
|
Total power |
7kw |
|
Film of thickness |
0.01-0.08mm |
|
Max. dia. For one roll bag |
150mm |
|
Max. unwinding dia. |
700mm |
|
Weight |
2400kgs |
|
Overall size |
7250x1900x2300mm |
|
item |
brand |
details |
remark |
|
Main machine inverter |
Delta inverter MS series |
1.5KW |
1pc |
|
Feeder motor |
Delta inverter |
0.75KW |
1pc |
|
Winding motor |
Delta inverter |
0.75KW |
1pc |
|
Folding motor |
Delta inverter |
0.75kw |
1pc |
|
Reverse turning motor |
Delta inverter |
0.75KW |
1pc |
|
Rewinding motor |
Delta inverter |
0.75kw |
2pcs |
|
Length fixed motor |
FUJI servo motor |
3KW |
1pc |
|
Controller |
Hangzhou risheng |
Touch screen |
1pc |
|
Main motor |
Made in China |
1.1KW |
1PC |
|
Sealing blade |
Cooper materials |
|
1set |
|
Cutting knife |
Steel |
|
1set |
|
Folding online |
Double folding |
|
1set |
|
Unwinder |
Auto loader by air cylinder,with power break |
|
1set |
|
Static system |
|
|
1set |
|
Finger for rewinder |
|
|
1set |
|
Lable packing device |
|
|
1set |
|
synchronous belt |
|
extra |
1set |
|
Electric part and switch |
China brand |
|
|
|
Temputure controller |
Omron or Delta |
|
|
|
Hall |
China brand |
|
|
|
Sensor |
China brand |
|
|
|
Displacement sensor |
China brand |
|
|

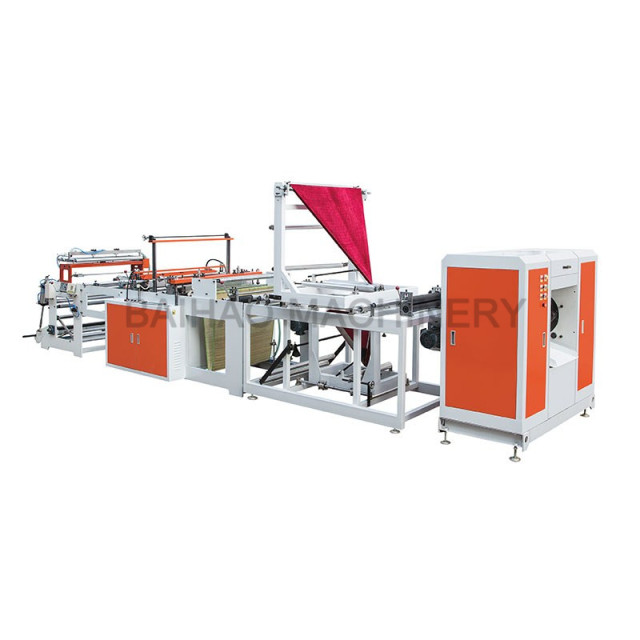

This machine is for garbage bag making, high speed and also suitable for thick film bag making, this machine also use for longer garbage bag making. S-type garbage bag making is a optional
