BOPP, PE, etc, which can be used to heat seal and cut( the smoothness of packing materials must be well.
BOPP, PE, etc, which can be used to heat seal and cut( the smoothness of packing materials must be well.

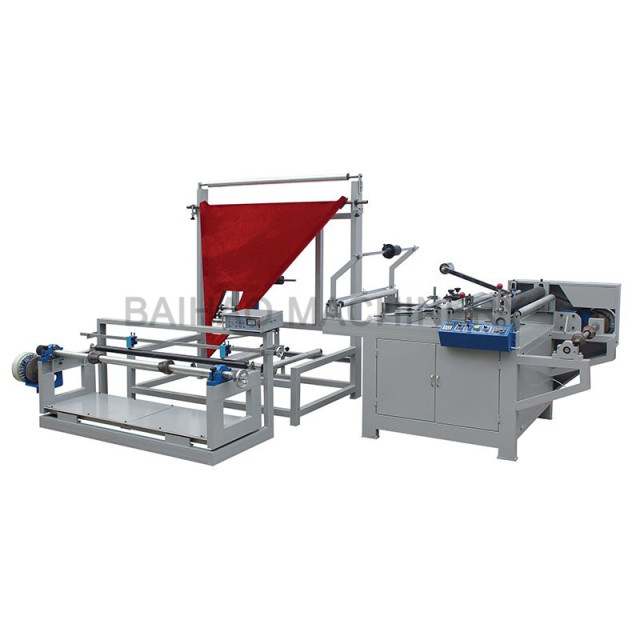

This machine is one part of the thermal cutting machine set, with functions of automatic gluing, orgen-type bottom folding, pearly-luster film laminating, ultrasonic hobbing, automatic meter counting, winding and unwinding for materials, magnetism powder brake,epc. This is a front production line of cutting machine.
|
Model |
1400 |
1600 |
1800 |
|
Max. making width |
1300mm |
1500mm |
1700mm |
|
Rollout speed |
20-100m/min |
20-100m/min |
20-100m/min |
|
Max.diameter of rolling |
800mm |
800mm |
800mm |
|
Electro-power |
1.5kw |
1.5kw |
2.2kw |
|
Complete weight |
500kg |
600kg |
700kg |
|
Overall dimension |
1800*1350*1450mm 1100*1300*1100mm |
2000*1450*1550mm 1100*1400*1100mm |
2200*1550*1850mm 1200*1500*1100mm |

This Machine Is Applied To Hot Cutting And Bag-Making With The Material Like BOPP, PP, PE, POF. It Is Widely Used In The Daily Packing, Featuring Quickness, Beautiful And Firm Sealed Sides, Ease Of Adjustment And Maintenance.
